| 品牌 | 其他品牌 | 产地类别 | 国产 |
|---|---|---|---|
| 应用领域 | 医疗卫生,化工,生物产业,制药/生物制药 |

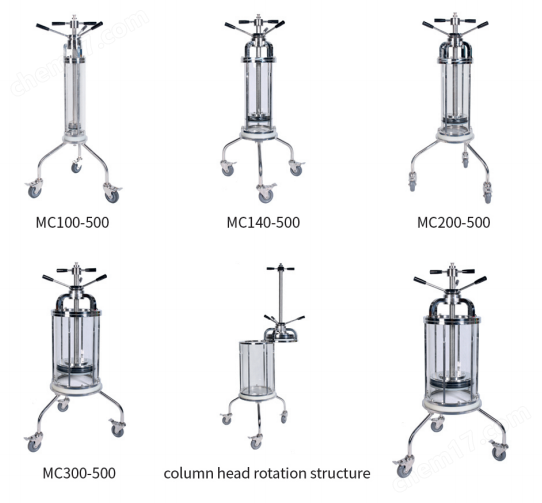

产品介绍:
1:独特的柱头密封方式,较气动密封可靠,较弹簧驱动密封持久
2:独特的柱头旋转方式,操作方便
3:最小化密封结构形式,性能可靠,寿命持久
4:巧妙的筛网固定方式,有效分配面积
5:专业流体仿真的分配器设计,确保高效分配效果
6:独特的柱管固定方式,保证安全性能
7:符合 cGMP要求的完整的验证文件及服务
Features:
1: It has a unique column head sealing which is more reliable than pneumatic seals and provides long-lasting performance compared to spring-driven seals.
2:The column head rotation method is also exclusive to our product, making it super easy to operate.
3:With a minimalistic seal structure, you can trust in its performance and durability for the long haul.
4:Our cleverly designed sieve mesh fixing method maximizes the effective distribution area, ensuring the top-notch results.
5:The distributor is of professional fluid simulation design, guaranteeing optimal distribution effects.
6:To maximize safety, we've implemented a special column tube fixing method that offers exceptional security.
7: Our product comes with a complete set of verification documents and services that comply with cGMP requirements.

尺寸 ID (mm) | 耐压 Pressure (bar) | 床层高度 Bed height (mm) | 床层体积 Bed volume (L) | 订货号(玻璃) Item No. ( Glass) | 订货号(有机玻璃) Item No. (PMMA) |
70 | 5 | 500 | 1.92 | MC70-500B | MC70-500A |
70 | 950 | 3.65 | MC70-950B | MC70-950A | |
100 | 5 | 500 | 3.93 | MC100-500B | MC100-500A |
100 | 950 | 7.46 | MC100-950B | MC100-950A | |
140 | 5 | 500 | 7.69 | MC140-500B | MC140-500A |
140 | 950 | 14.62 | MC140-950B | MC140-950A | |
200 | 4 | 500 | 15.70 | MC200-500B | MC200-500A |
200 | 950 | 29.83 | MC200-950B | MC200-950A | |
300 | 4 | 500 | 35.33 | MC300-500B | MC300-500A |
300 | 950 | 67.12 | MC300-950B | MC300-950A |
